Carbon Printing

  1. The technology allows minimum line width of 0.1mm
  2. The machine is equipped with CCD automatic positioning, and the production capacity is 250PNL per hour
  3. Standard product size is within 350mm x 350mm
  4. Customized service and size are also available
  5. Annual production capacity: 30 million PCS/year

PCB Process Flow

Acid cleaning—> AG Printing—> Semi-drying—> B1 Printing—> Semi-drying—> B1 Printing—> Semi-drying—> Total Drying—> Blue Glue Printing—> Drying

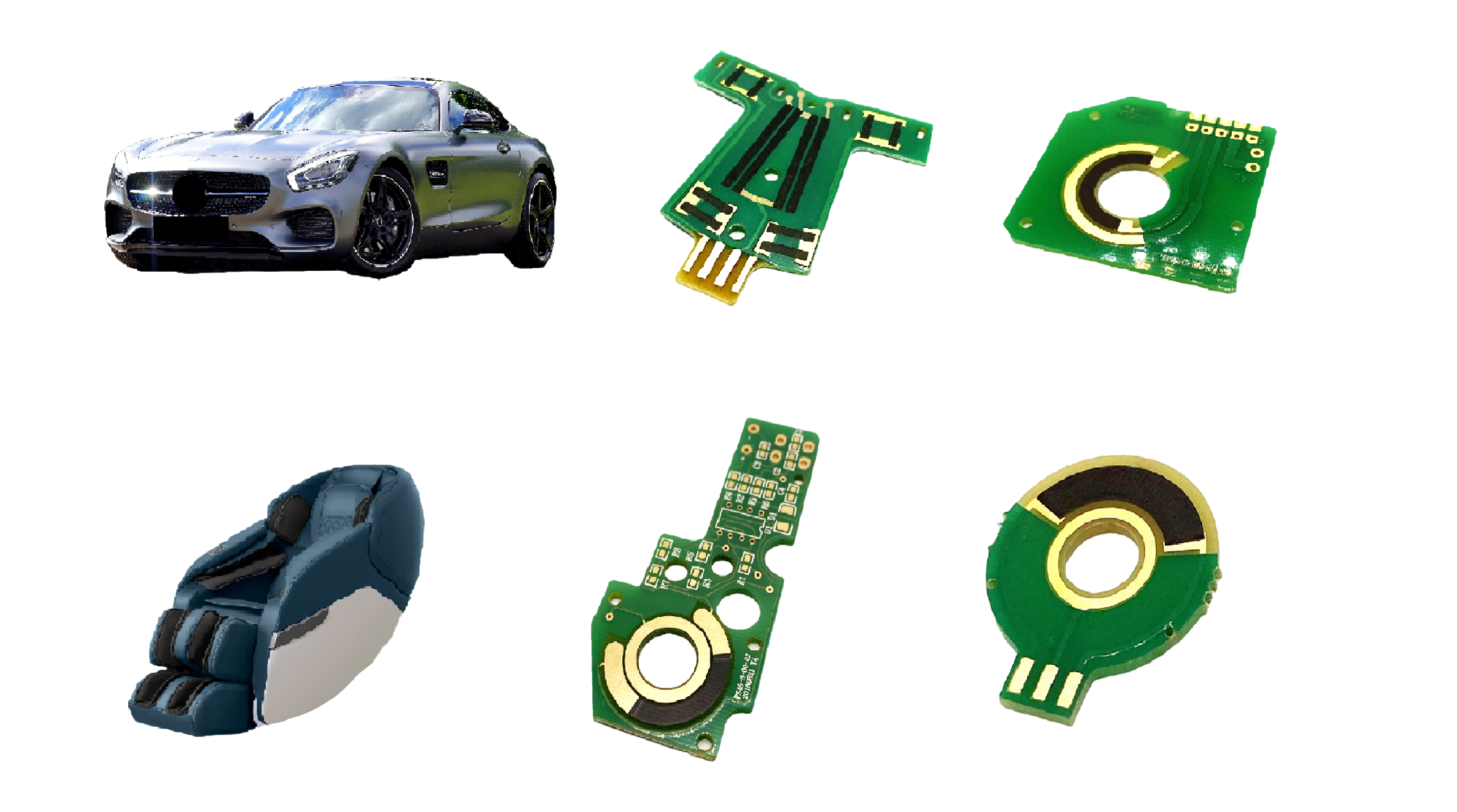

Our company can do PCB thick film printing according to customer requirements, the full resistance range is from 1KΩ~3MΩ, the allowable deviation value is ±10%~±30%, and the service life is more than 1 million times. Main applications include:

  1. Automobile
    (air conditioning damper sensor, wiper, dimmer, car instrument accessories, rearview mirror accessories, car seat sensor, car steering wheel accessories.)
  2. Smart home appliances
    (smart sofas, coffee machines, washing machines, printers, power tools.)

  1. The machine technology can print the minimum line width of 0.1mm
  2. The machine is equipped with CCD automatic positioning, and the production capacity is 250PNL per hour
  3. Product size is 350mm x 350mm
  4. Printing machine power: 6KW
  5. Customized service available
  6. Annual production capacity: 30 million PCS/yea

ML process flow
dust removal—> AG printing—> semi-drying—> dust removal—> OC printing—> semi-drying—> dust removal—> B1 printing—> semi-drying—> dust removal—> R printing—> drying

Our FPC (Mylar) products are thin and light, and design changes can be made according to customer requirements. Moreover, it is resistant to high and low temperature (-30~70°C), stable chemical change, high reliability, and the pressing operation life can reach 5 million times.

Main applications include:

1、 Game console application(inner soft board of Play Station controller)
2、 Application of special medical products(blood glucose test paper for measuring blood glucose value)

  1. CCD automatic precision printing machine
  2. Maximum printing size: 150 x 150mm
  3. Mesh distance from surface: 0~5 mm
  4. Platform positioning accuracy: ≤ 0.01mm
  5. Ink layer thickness deviation: ≤ 0.002mm
  6. Overprinting accuracy: ≤ 0.02mm
  7. Maximum printing capacity: 600 times/H

Ceramic process flow

Pre-printing preparation—> conductor printing—> first article confirmation—> high temperature sintering—> resistance printing—> first article confirmation—> high temperature sintering—> protective layer printing—> first article confirmation—> high temperature Sintering —> resistance value, appearance inspection —> packaging and storage

The working range of our ceramic products is resistant to high and low temperature (-40~125°C), with strong conductor adhesion, good wear resistance, and the life span of up to 1 million times.

Main applications include:

  1. Automotive ceramic thick film circuit (automotive throttle sensor, automotive oil level sensor, electronic igniter, etc.)
  2. Power tools

    (AC speed control switch)
