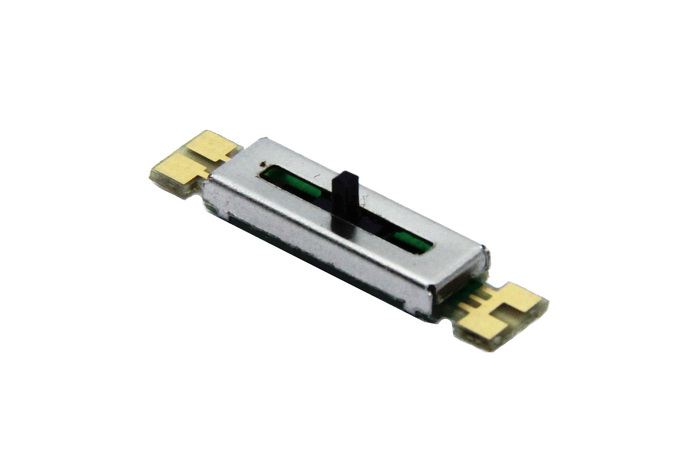

F05G-29 B1Kb L2.2MM

Feature:

  1. Carbon element.
  2. Molded case.
  3. Wide assortment of resistance tapers.

Specification:Download ▼

ELECTRICAL CHARACTERISTICS

Total Resistance
1KΩ±10%

Rated Power
Linear tapers:0.025W

Rated Voltage
Taper B: AC50V

Sliding Noise
Less than 100mV

Insulation Resistance
More than 50MΩ

Residual Resistance
Term1-2: Less than 10Ω
Term2-3: Less than 10Ω

MECHANICAL CHARACTERISTICS

Total Total Sliding Travel
10.0 mm±0.5 mm

Operation Force
10~80gf

Sliding Stopper Strength
There should be no visual damage when minimum
2.5Kgf.cm of torque is applied.

Push-Pull Strength of handle
There should be no damage when maximum push
strength of 1.0Kgf is applied.

ENDURANCE CHARACTERISTICS

Rotational Life
5,000 cycles minimum

SWITCH CHARACTERISTICS (FOR WITH-SWITCH TYPE)

Resistance of Switch
/

Switch Rated Power
/

Insulation Resistance
/

Withstand Voltage
/

Switch Rotation Angle
/

Switch Action
/

Switch Push Stroke
/

Push on Switch Action
/

Number of Cycles
/
