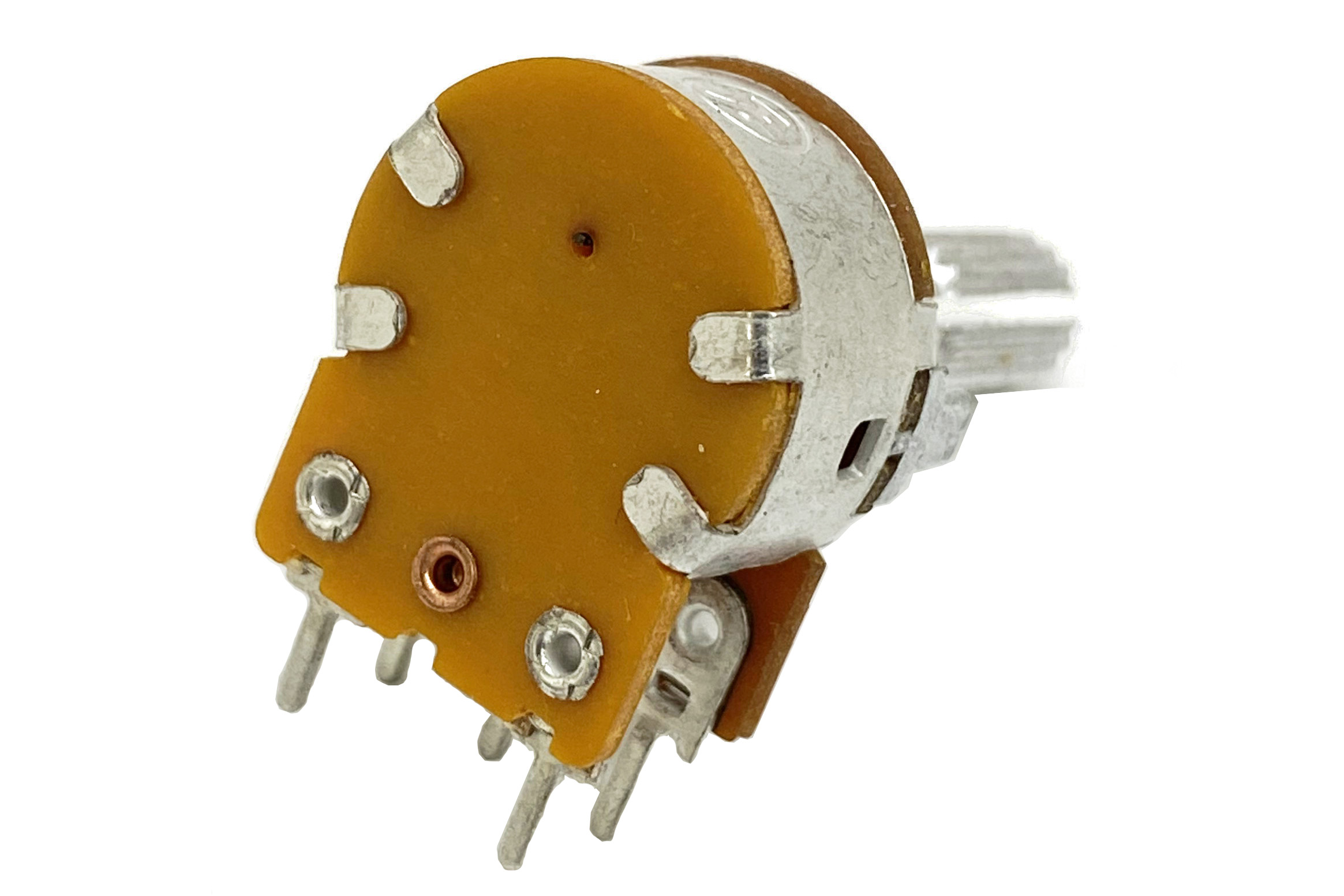

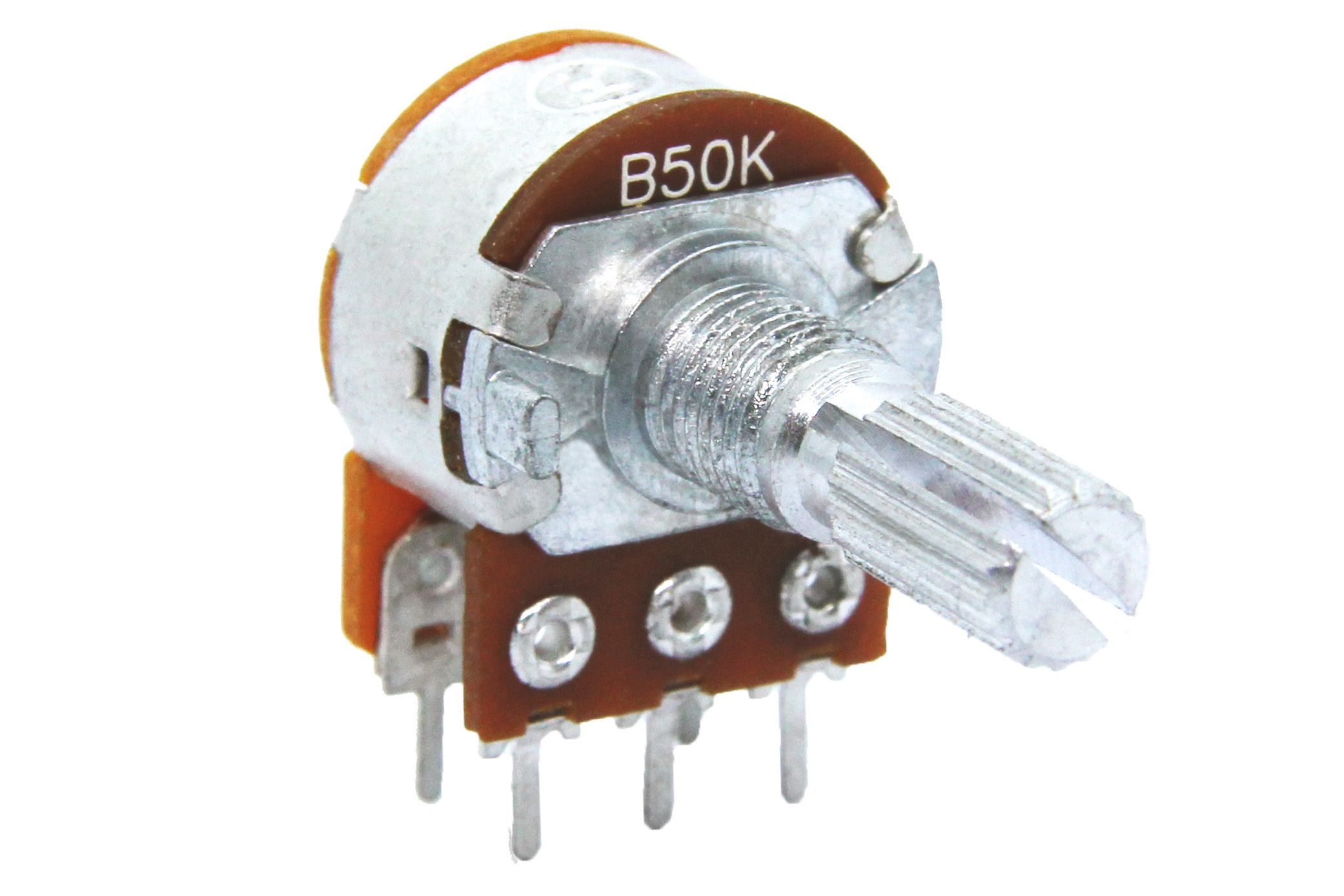

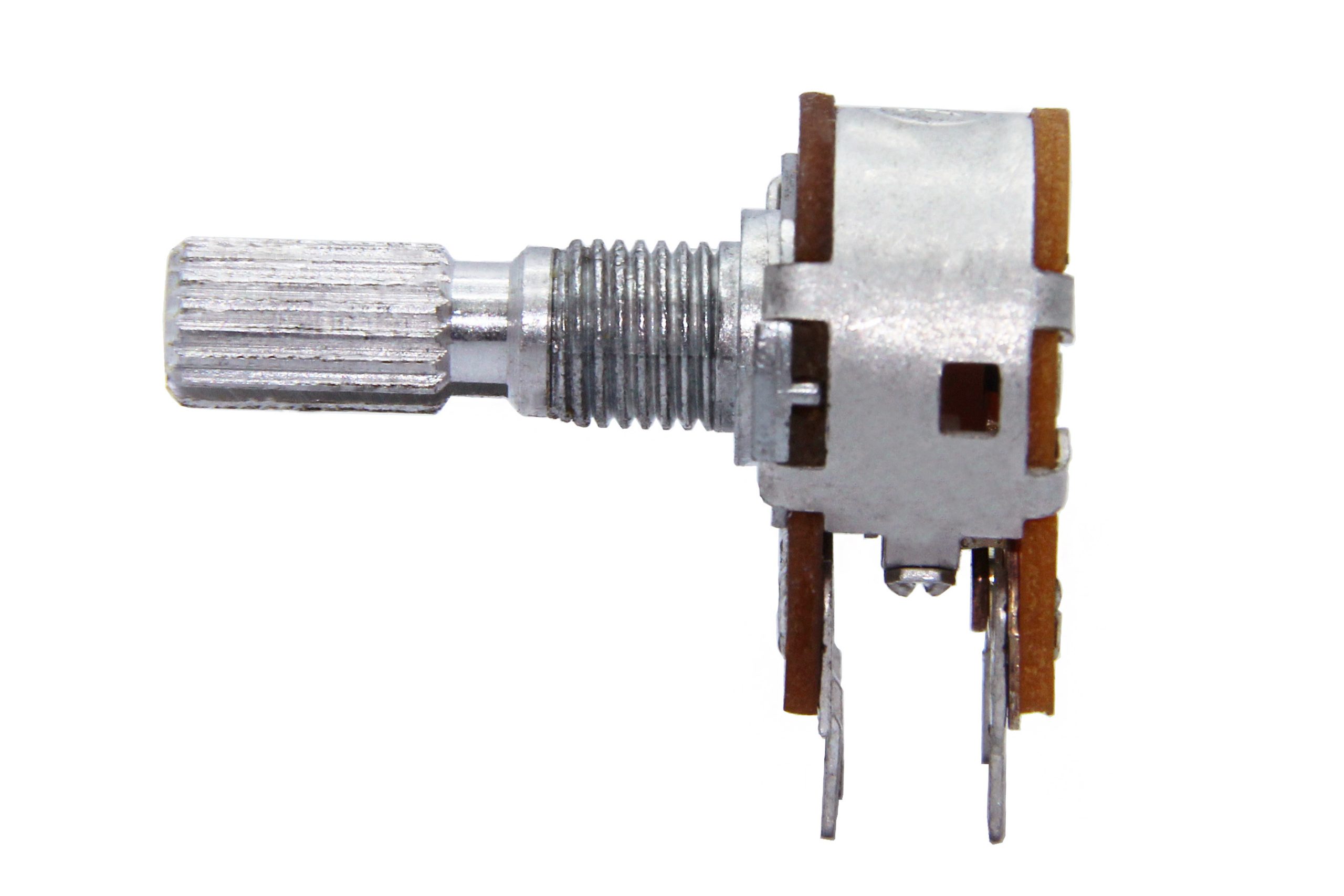

F16K-HV0Q3CB20K

Feature:

  1. Metal shaft style.
  2. Carbon element.
  3. Wide range of resistance tapers.

Specification : Download ▼

ELECTRICAL CHARACTERISTICS

Total Resistance
20KΩ±20%

Rated Power
Taper B:0.2W

Rated Voltage
Taper B: AC200V

Sliding Noise
Less than 100mV

Insulation Resistance
More than 100MΩ

Residual Resistance
Term1-2: Less than 20Ω
Term2-3: Less than 20Ω

Gang Error(Dual Unit)
/

MECHANICAL CHARACTERISTICS

Total Rotation Angle
300°±10°

Rotational Torque
20~100gf.cm

Rotation Stopper Strength
7.0Kgf.cm Min.

Push-Pull Strength of Shaft
8.0Kgf Min.

ENDURANCE CHARACTERISTICS

Rotational Life
15,000 cycles

SWITCH CHARACTERISTICS (FOR WITH-SWITCH TYPE)

Resistance of Switch
Less than 50mΩ

Switch Rated Power
1.0A at DC 12V/ AC12V

Insulation Resistance
More than 100MΩ

Withstand Voltage
There shall be no damage arc or dielectric breakdown

Switch Rotation Angle
35°±10°

Switch Action
70~250 gf.cm

Switch Push Stroke
/

Push on Switch Action
/

Number of Cycles
15,000 Cycles min
