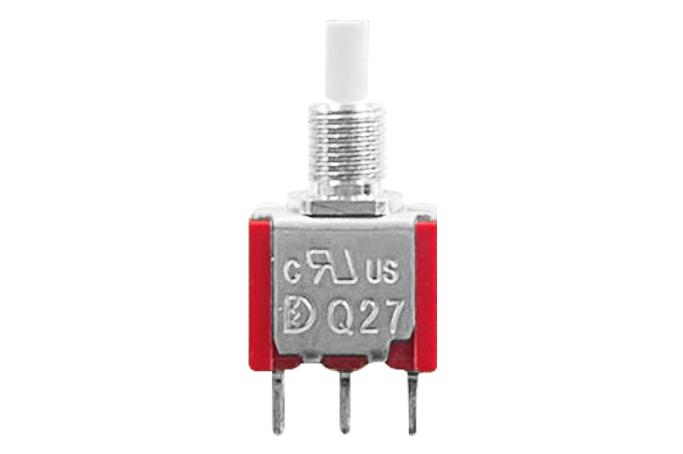

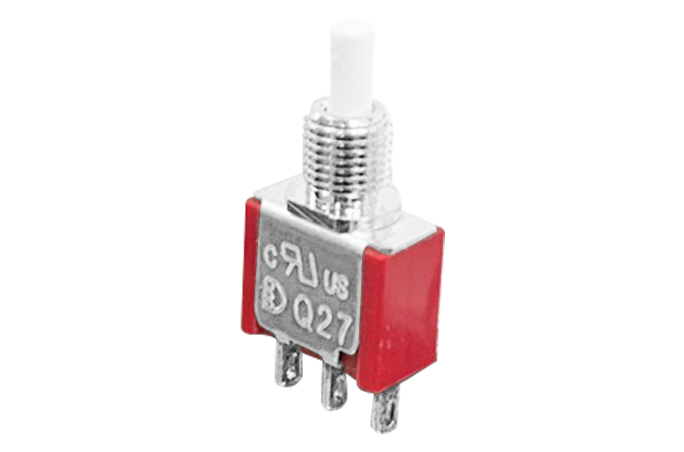

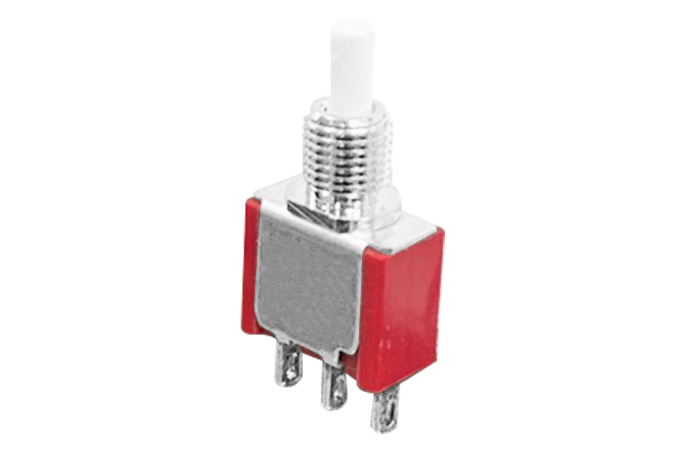

FSZX13-1-2-102-DE

Feature:

  1. Size: 9.5mm
  2. Rating load: 0.4VA Max @20VAC or DC Max.
  3. One circuit.

SpecificationDownload ▼

ELECTRICAL CHARACTERISTICS

Rating load
0.4VA Max @20VAC or DC Max

Contact Resistance
50mΩ Max

Insulation Resistance
1GΩ min/500V

MECHANICAL CHARACTERISTICS

Travel to Closure
1.5mm±0.25mm

ENDURANCE CHARACTERISTICS

Operation Life without Load
500,000 cycles
